The sophisticated controller

HCF

Available in one size

Compatible motors: HMP04, HMD06, HMD08 (differences depending on the version)
Connection S1: Rotary code switch (Setting the CANopen address)
Connection X1: Plug-in terminal (6-pole) (DC supply (L+ / L-), Brake resistor (L+ / RB))
Connection X2: Plug-in terminal (2 x 10-pole) (Safe Stop with relay output, 8 digital inputs, 2 analog inputs 10-bit ADC, 3 digital outputs, 1 relay output (24 V / 1 A), Logic power supply)
Connection X3: Plug-in terminal (4-pole) (Motor phases (U/V/W/PE))
Connection X4: D-sub connector (9-pole) (RS232 interface)
Connection X5: D-sub panel connector (9-pole) (CANopen interface)
Connection X6: D-sub connector (15-pole) (Interface for rotary encoders, with temperature monitoring (PTC / KTY / Klixon))
Switch frequency: 8, 16 kHz (Factory setting 8 kHz)
Supply voltage: 24 - 48 VDC
Output Voltage: 3 x 0 - 33 Vrms
Continuous output current: 8 Arms
Maximum output current: 16 Arms
Rated power: 240 W
Interface: CANopen (CiA 402), RS232
DC bus voltage: 24 - 48 VDC

Sophisticated controlled with the...

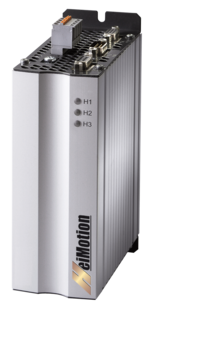

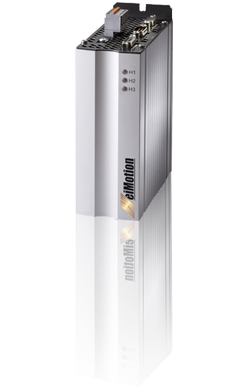

Servo drive HCF
