Geared Motors Compact

Cost-effective and versatile

Motor data

Motor types: three-phase motors, capacitor motors, EC motors
Output power: 20 - 220 W
Rated speed: 1,200 - 3,000 rpm
Rated torque: 0.13 - 1.27 Nm
Mass moment of inertia: 0.18 - 3.30 kgcm2
Options: Capacitor loosely enclosed, brake, encoder, electronics, spur gear (with foot), bevel gear (with foot strips, with additional flange, with torque support), worm gear (shaft with flange on one side)

Catalog  Request

* Please do not order small quantities. This is not a serial product and can therefore only be ordered in large quantities

Markets and
Industries

PACKAGING MACHINES
TOOLING MACHINES
OPTICAL MACHINES
INDUSTRIAL ROBOTS
AUTOMATION
HANDLING

Applications and
uses

PACKAGING MACHINES
TOOLING MACHINES
OPTICAL MACHINES
INDUSTRIAL ROBOTS
AUTOMATION
HANDLING

Features and
Advantages

PACKAGING MACHINES
TOOLING MACHINES
OPTICAL MACHINES
INDUSTRIAL ROBOTS
AUTOMATION
HANDLING

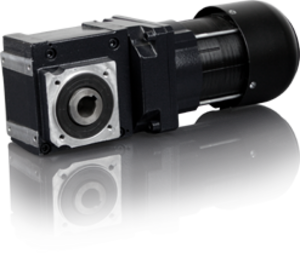

Geared Motors Compact

Our universal and low-cost solution

Our standard geared motor program is supplemented by the "Compact Geared Motors" series. This series has been specially designed for applications that require a protection class of IP40 or less and represents a cost-effective alternative to the gear profile motors. Available in the Compact version are helical, helical-bevel and worm gear units.

The combination of electric motor and gearhead allows a much higher torque to be achieved at lower speeds compared to the motor shaft. Heidrive offers you a wide range of geared motors for your individual application.
